800G OSFP Transceivers for High-Performance Networks
Reliable, high-density 800G optical connectivity designed for modern data centers, cloud networks, AI and machine-learning fabrics, high-performance computing environments, and high-capacity switch-to-switch interconnects. The E.C.I. NETWORKS OSFP-800 delivers 800 Gigabit Ethernet connectivity through eight parallel 100G PAM4 optical lanes operating in the 850 nm wavelength band.
Using a hot-pluggable, finned-top OSFP form factor and a single MPO-16/APC optical interface, the transceiver supports transmission distances up to 100 m over OM4 multimode fiber. Its eight-lane VCSEL-based optical architecture provides a cost-effective, low-latency solution for short-reach connections within data centers, AI clusters, and HPC networks.
Key Features
- Hot-pluggable, open-top OSFP form factor
- 800 Gigabit Ethernet aggregate data rate
- Two 400G LR4 optical interfaces
- Eight electrical and optical lanes operating at up to 106.25 Gb/s per lane
- 53.125 GBd PAM4 signaling per lane
- Two groups of four CWDM optical wavelengths
- Nominal wavelengths of 1271, 1291, 1311, and 1331 nm
- High-performance SiPho optical modulator
- Integrated optical multiplexing and demultiplexing
- Photodiode and transimpedance-amplifier receiver architecture
- Dual duplex LC optical interface
- Up to 10 km transmission over single-mode fiber
- OSFP MSA Revision 5.22 compliant
- CMIS Revision 5.2 compliant
- IEEE 802.3ck-2022 alignment
- Integrated digital diagnostic monitoring
- Two-wire I²C management interface
- Single 3.3 V power supply
- Maximum power consumption of 16 W
- Operating temperature: 0°C to +70°C
- Storage temperature: −40°C to +85°C
- Class 1 laser product
- RoHS II compliant
- Supports 800GBASE-2LR4 Ethernet and IB NDR applications

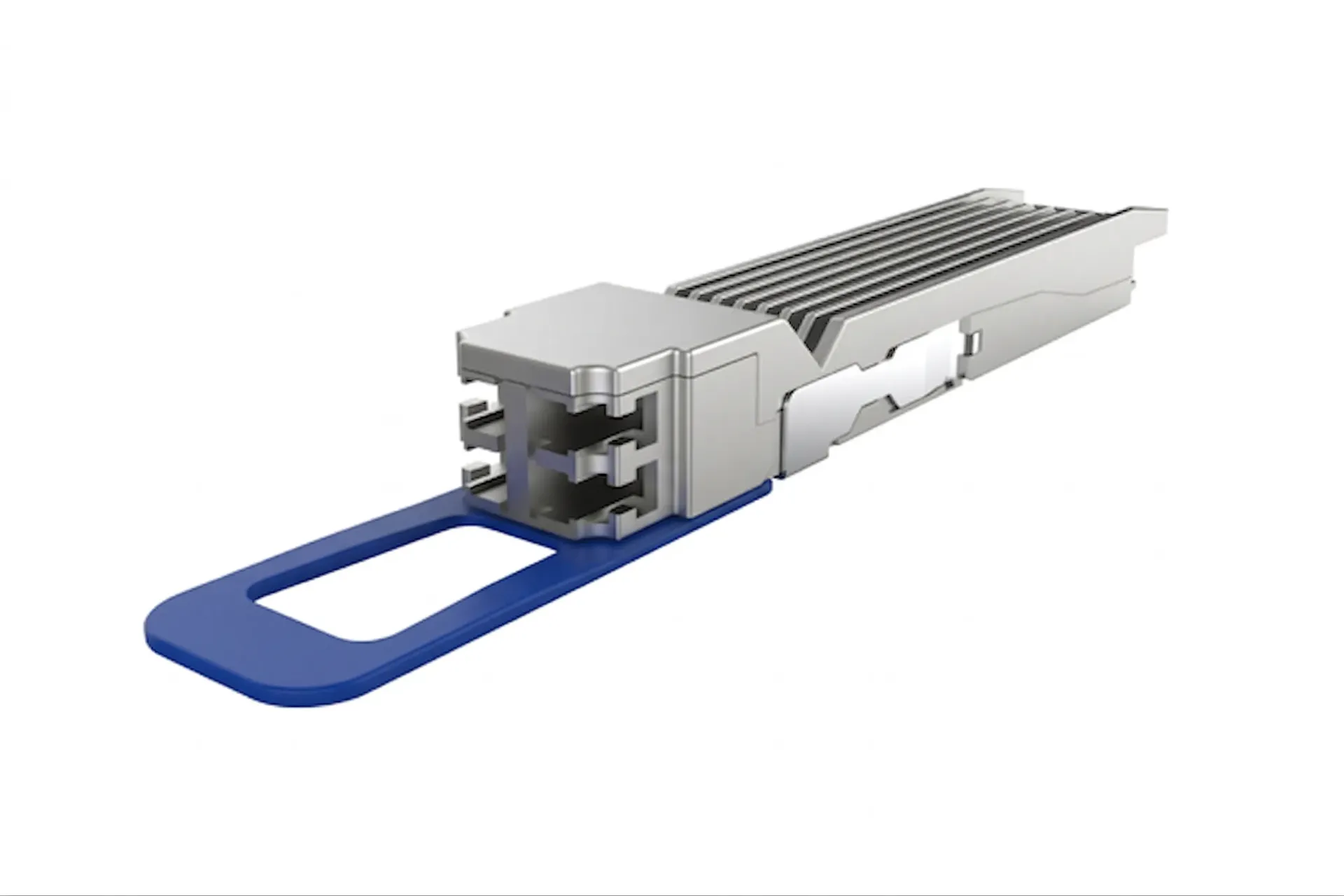

800G OSFP 2×400G LR4 Optical Transceiver
The EN-OSFP800-2LR4 is an 800GbE OSFP optical transceiver designed for single-mode fiber connections up to 10 km. It incorporates two 400G LR4 optical engines within one open-top OSFP package.
The module converts eight PAM4 electrical input lanes into eight optical signals organized as two groups of four CWDM wavelengths. Within each 400G LR4 interface, the four optical wavelengths are multiplexed onto one transmit fiber. On the receiver side, the four incoming wavelengths are demultiplexed from one receive fiber and converted back into four PAM4 electrical output lanes.
Each 400G LR4 interface uses one duplex LC connection. The complete module therefore uses dual duplex LC connectors and four single-mode fibers: two transmit fibers and two receive fibers. The functional block diagram shows two four-channel optical engines connected to the module’s eight electrical transmit and receive lanes.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Part Number | EN-OSFP800-2LR4 | Product Type | 800G OSFP 2×400G LR4 optical transceiver |
| Form Factor | Hot-pluggable, open-top OSFP | Host Connector | 60-contact OSFP edge connector |
| Aggregate Data Rate | 800Gb/s | Optical Interfaces | Two 400G LR4 interfaces |
| Per-Lane Data Rate | Up to 106.25 Gb/s PAM4 | Signaling Rate | 53.125 GBd per lane, ±100 ppm |
| Electrical Lane Configuration | Eight PAM4 host lanes | Optical Lane Configuration | Eight optical lanes arranged as two four-lane CWDM groups |
| Modulation | PAM4 | Optical Architecture | Two four-wavelength multiplexed optical engines |
| Application | 800GBASE-2LR4 Ethernet and IB NDR | Maximum Reach | Up to 10 km over SMF |
| Standards Compliance | OSFP MSA Revision 5.22, CMIS Revision 5.2, IEEE 802.3ck-2022, and IEEE 802.3-2022 | Management Interface | CMIS-compliant two-wire I²C interface |
| Nominal Wavelengths | 1271, 1291, 1311, and 1331 nm per 400G interface | Number of Wavelengths | Four wavelengths per 400G engine; eight optical lanes total |
| Wavelength Ranges | 1264.5–1277.5 nm, 1284.5–1297.5 nm, 1304.5–1317.5 nm, and 1324.5–1337.5 nm | Wavelength Multiplexing | Four CWDM wavelengths multiplexed onto each transmit fiber |
| Transmitter Technology | High-performance SiPho modulator | Receiver Technology | Photodiode receivers with transimpedance amplifiers |
| Optical Connector | Dual duplex LC receptacles | Fiber Type | Single-mode fiber |
| Fiber Count | Four fibers: two transmit and two receive | Link Configuration | Two duplex single-mode optical links |
| Recommended Cable | Two duplex single-mode LC-to-LC patch cables | Channel Insertion Loss | Maximum 6.3 dB |
| Link Power Budget | 11 dB at maximum TDECQ | Penalty Allocation | 4.7 dB at maximum TDECQ |
| Average Transmit Power | −2.7 to +5.1 dBm per optical lane | Maximum Transmitter OMAouter | +4.4 dBm per lane |
| Minimum Transmitter OMAouter | +0.3 dBm for TDECQ below 1.4 dB; otherwise TDECQ − 1.1 dBm | Maximum TDECQ | 3.9 dB |
| Maximum TECQ | 3.9 dB | Maximum Difference Between TDECQ and TECQ | 2.5 dB |
| Extinction Ratio | Minimum 3.5 dB per lane | Side-Mode Suppression Ratio | Minimum 30 dB |
| Transmitter Overshoot and Undershoot | Maximum 25% | Transmitter Power Excursion | Maximum 1.8 dBm |
| Transmitter Transition Time | Maximum 17 ps | Off-Transmitter Average Power | Maximum −16 dBm |
| Relative Intensity Noise | Maximum −136 dB/Hz | Optical Return-Loss Tolerance | 15.6 dB |
| Transmitter Reflectance | Maximum −26 dB | Receiver Reflectance | Maximum −26 dB |
| Average Receive Power | −9.0 to +5.1 dBm per lane | Maximum Receive OMAouter | +4.4 dBm per lane |
| Receiver Damage Threshold | +6.1 dBm per lane | Receiver Sensitivity | −6.8 dBm OMAouter for TECQ below 1.4 dB; otherwise TECQ − 8.2 dBm |
| Stressed Receiver Sensitivity | −4.3 dBm OMAouter per lane | Maximum SECQ | 3.9 dB |
| Aggressor-Lane OMAouter | −0.4 dBm | Digital Diagnostics | Temperature, voltage, Tx bias, Tx power, and Rx power monitoring |
| Temperature-Monitor Accuracy | ±3°C | Voltage-Monitor Accuracy | ±0.1 V |
| Transmit-Power Monitor Accuracy | ±3 dB | Receive-Power Monitor Accuracy | ±3 dB |
| Tx Bias Monitor Accuracy | ±10% | I²C Clock Frequency | Up to 400 kHz in Fast Mode or 1000 kHz in Fast Mode Plus |
| Power Supply | 3.3 V nominal | Supply Range | 3.135 to 3.465 V |
| Maximum Power Consumption | 16 W | Operating Temperature | 0°C to +70°C |
| Storage Temperature | −40°C to +85°C | Relative Humidity | 5% to 85% |
| ESD Protection | ±8 kV contact and ±15 kV air | Laser Safety | Class 1 laser product |
| Environmental Compliance | RoHS II Directive 2011/65/EU | Primary Applications | Data centers, cloud networks, AI fabrics, HPC systems, campus networks, 800G switches, and IB NDR interconnects |
Connectivity examples

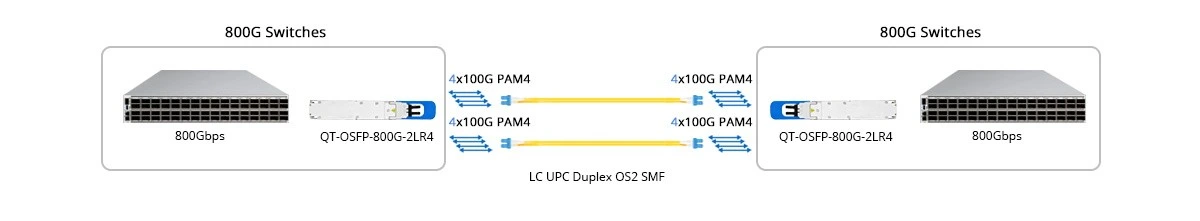

800G to 800G Direct Connectivity

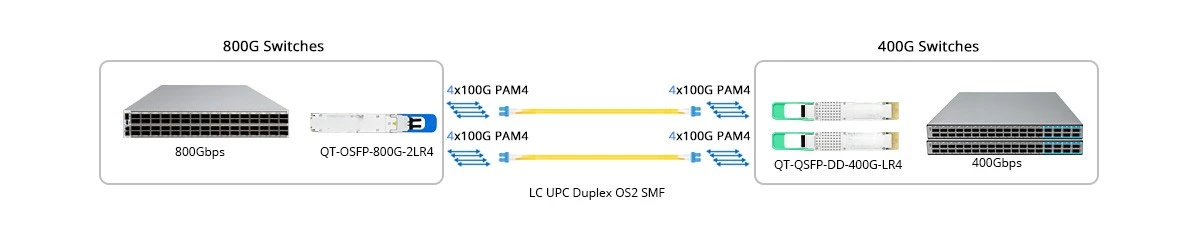

800G to 2x 400GE Breakout Connectivity
Selection Guide
Selecting the right 800G transceiver depends on the host form factor, distance, installed fiber, connector type, thermal capacity, and required port configuration.
| Selection Criteria | Option | Recommended Transceiver | Fiber / Connector | Typical Use Case |
|---|---|---|---|---|
| Host Form Factor | OSFP | EN-OSFP800-SR8-M16, OSFP VR8, DR8, 2×FR4, 2×LR4 or coherent OSFP | OSFP host interface with integrated or riding heat-sink support | High-density switches, AI fabrics, HPC systems and cloud platforms |
| Host Form Factor | QSFP-DD800 | QSFP-DD800 SR8, DR8, 2×FR4, 2×LR4 or coherent optics | QSFP-DD800 host interface | Platforms designed specifically for QSFP-DD800 modules |
| Distance | Up to approximately 50 m | 800GBASE-VR8 or selected 2×400G SR4 modules | Parallel MMF; MPO-16/APC or dual MPO-12/APC | In-rack, adjacent-rack and short-row connections |
| Distance | Up to 100 m | 800GBASE-SR8 | OM4 MMF; single MPO-16/APC | AI clusters, HPC fabrics, leaf-spine and short-reach switch interconnects |
| Distance | Up to 500 m | 800GBASE-DR8 or 2×400GBASE-DR4 | Parallel OS2 SMF; MPO-16/APC or dual MPO-12/APC | Data-center spine links, aggregation and high-density interconnects |
| Distance | Up to 2 km | 800G 2×400GBASE-FR4 or selected DR8-2 implementations | Duplex or parallel SMF; dual duplex LC, CS or MPO depending on module | Large data centers, campus aggregation and short-reach DCI |
| Distance | Up to 10 km | 800G 2×400GBASE-LR4 | Single-mode fiber; dual duplex LC or dual CS | Campus, inter-building and metro-access connections |
| Distance | Up to 120 km | 800ZR coherent OSFP, with an appropriate amplified DWDM system | Duplex SMF LC; tunable coherent DWDM | Data-center interconnect and metro transport |
| Distance | Regional or long haul | 800G ZR+ coherent OSFP with a compatible line system | Duplex SMF LC; amplified DWDM | Metro, regional and long-haul transport |
| Fiber Type | OM4 multimode fiber | OSFP800-SR8 | MPO-16/APC | Short-reach, low-latency data-center connectivity |
| Fiber Type | Parallel single-mode OS2 | DR8, DR8-2 or 2×DR4 | MPO-16/APC or dual MPO-12/APC | 500 m to 2 km parallel-fiber links |
| Fiber Type | Duplex single-mode OS2 | 2×FR4, 2×LR4, ZR or ZR+ | Dual duplex LC, dual CS or duplex LC depending on module | Campus, DCI, metro and transport applications |
| Connector Type | MPO-16/APC | OSFP800-SR8, selected VR8 and DR8 modules | Sixteen parallel fibers | Direct 800G links using eight transmit and eight receive lanes |
| Connector Type | Dual MPO-12/APC | Selected 2×SR4, 2×VR4 and 2×DR4 OSFP modules | Two independent eight-fiber optical interfaces | Dual-400G connectivity and modular cabling |
| Connector Type | Dual Duplex LC | 2×FR4 or 2×LR4 | Two duplex SMF pairs | Two 400G WDM optical connections |
| Connector Type | Dual CS | Selected 2×FR4 or 2×LR4 modules | Two compact duplex SMF connections | High-density WDM connectivity |
| Optical Technology | 8×100G PAM4 parallel multimode optics | SR8 and VR8 | Parallel MMF with MPO interface | Cost-effective, low-latency short-reach links |
| Optical Technology | 8×100G PAM4 parallel single-mode optics | DR8 and DR8-2 | Parallel SMF with MPO interface | Medium-reach data-center connections |
| Optical Technology | Dual 400G WDM engines | 2×FR4 or 2×LR4 | Dual duplex LC or dual CS | Reuse of duplex-fiber infrastructure |
| Optical Technology | Coherent DWDM | 800ZR and 800G ZR+ | Duplex SMF LC with compatible DWDM system | DCI, metro, regional and long-haul transport |
| Breakout Capability | 800G to 2×400G | Selected SR8, VR8, DR8 and dual-engine OSFP modules | MPO or dual optical connectors depending on module | Connecting one OSFP port to two 400G endpoints |
| Breakout Capability | 800G to 4×200G | Selected parallel-optics modules and host platforms | MPO breakout assembly | High-density NIC, DPU and accelerator connectivity |
| Breakout Capability | 800G to 8×100G | Selected eight-lane OSFP modules and host platforms | MPO-16 breakout assembly | Connecting one 800G port to eight 100G endpoints |
| Power and Thermal | Less than 16 W | OSFP800-SR8-M16 | OSFP cage must support the module’s finned-top cooling configuration | High-density short-reach data-center deployments |
| Power and Thermal | Higher thermal budget | Long-reach WDM and coherent OSFP optics | Platform-specific power and cooling | Metro, DCI and extended-reach applications |
Applications
Deployment scenarios for this module
Data Center & Enterprise Networks
High-speed connectivity for leaf-spine architectures, server aggregation, and backbone upgrades supporting growing east-west traffic.
Telecom & Service Provider Transport
Robust optical connectivity for aggregation, metro, and long-haul transport across carrier and service provider networks.
Cloud, AI & Hyperscale Infrastructure
Reliable, low-latency links designed for high-performance computing, AI workloads, and scalable cloud environments.
