Open Visibility: a practical deployment reference for building a full visibility stack from physical traffic access all the way to advanced, DPU-accelerated processing. This architecture works in data centers, enterprise cores, and mobile carrier environments — anywhere you need high-speed monitoring with scale and flexibility.
Architecture
Layer 1: TAPstack — Traffic Acquisition
TAPstack provides the physical access points for all links you want to monitor.
Where it fits:
- Inline or OOB optical/multimode/singlemode up to 400G
- High-density 1U blocks (up to 24 TAPs)
- Copper TAPs for 1G/10G server and appliance links
Why it matters:
- 100% passive, fault-tolerant
- Produces an exact copy of traffic without any risk to production
- Available split ratios tune your optical budgets
This is your "clean data source." Every downstream tool depends on the fidelity of the traffic copy TAPstack provides.
Layer 2: PacketMaestro — L2 Visibility Fabric
PacketMaestro takes all TAP outputs and organizes traffic delivery to the right tools.
Core functions:
- Aggregation, replication, filtering, load balancing
- L2-L4 filtering for IPv4/IPv6
- VLAN tagging/untagging
- Port breakout (e.g., 400G→4x100G, 100G→4x25G)
- Multi-Tbps switching throughput
Common hardware choices:
This is your "traffic distribution layer." It simplifies large TAP environments, consolidates visibility across racks, and reduces tool sprawl by sending only relevant traffic.
Layer 3: PacketMaestro PRO — Advanced Processing
PacketMaestro PRO adds intelligent, DPU-powered processing when you need deeper analytics.
What it does:
- Deduplication
- Packet trimming / slicing
- DPI (Deep Packet Inspection)
- Data masking
- Tunnel termination and filtering: GTP, VXLAN, GRE
- Inner-IP load balancing
- LTE/5G session correlation (IMSI, UE, TEID)
- sFlow/NetFlow generation
Hardware options:
This is your "intelligence and traffic conditioning layer." These appliances plug into your visibility fabric like any other tool target and are ideal when downstream tools cannot handle raw high-rate traffic.
End-to-End Data Path
Step-by-step traffic path through the entire visibility stack:
- Production link → TAPstack — TAPstack creates a lossless copy of both directions.
- TAPstack → PacketMaestro ingress — All TAP outputs feed into PM at 10G/25G/100G/400G depending on the network.
- PacketMaestro → Filtering/Aggregation — PM groups, filters, and distributes traffic by service type, VLAN, app, or tool function.
- PacketMaestro → PacketMaestro PRO (optional) — When deeper inspection or cleanup is needed (e.g., for mobile cores or forensic tools), PM forwards traffic to ADP nodes.
- PacketMaestro PRO → Tool Farms — PM PRO cleans, correlates, trims, masks, or decapsulates traffic and sends optimized traffic to IDS/IPS, NDR/NTA, PCAP appliances, compliance/forensics, and UE analytics/5G probes.
Typical Deployment Scenarios
Data Center / Enterprise Core
- TAPstack on top-of-rack or core uplinks
- PacketMaestro PM400 as visibility spine
- PacketMaestro PM25/PM100 as leafs
- PM PRO for deduplication, masking, flow export
- Tools: NDR, APM, Forensics, PCAP
Mobile Carrier (4G/5G EPC / 5GC)
- TAPstack on S1-U, N3, N6, N9, and interconnect links
- PM100/PM400 for aggregation
- ADP200/220 for GTP decap, 5G signaling correlation, data masking, DPI
- Tools: probe farms, analytics, lawful intercept, user-plane monitoring
Inline Security / Zero Trust Visibility
- TAPstack inline copper with bypass options
- PM25/PM100 distributing decrypted or segmented traffic
- PM PRO for packet modification or DPI
- Tools: IDS, IPS, DLP, Proxy, Decryption gateways
Management and Automation
MaestroVision ties the whole stack together:
MaestroVision
- Auto-discovery of PM + PM PRO appliances
- Centralized drag-and-drop map/rule creation
- Topology-aware visibility view
- Real-time stats and telemetry
- Advanced search across devices
This makes large, multi-rack or multi-site visibility deployments straightforward to operate.

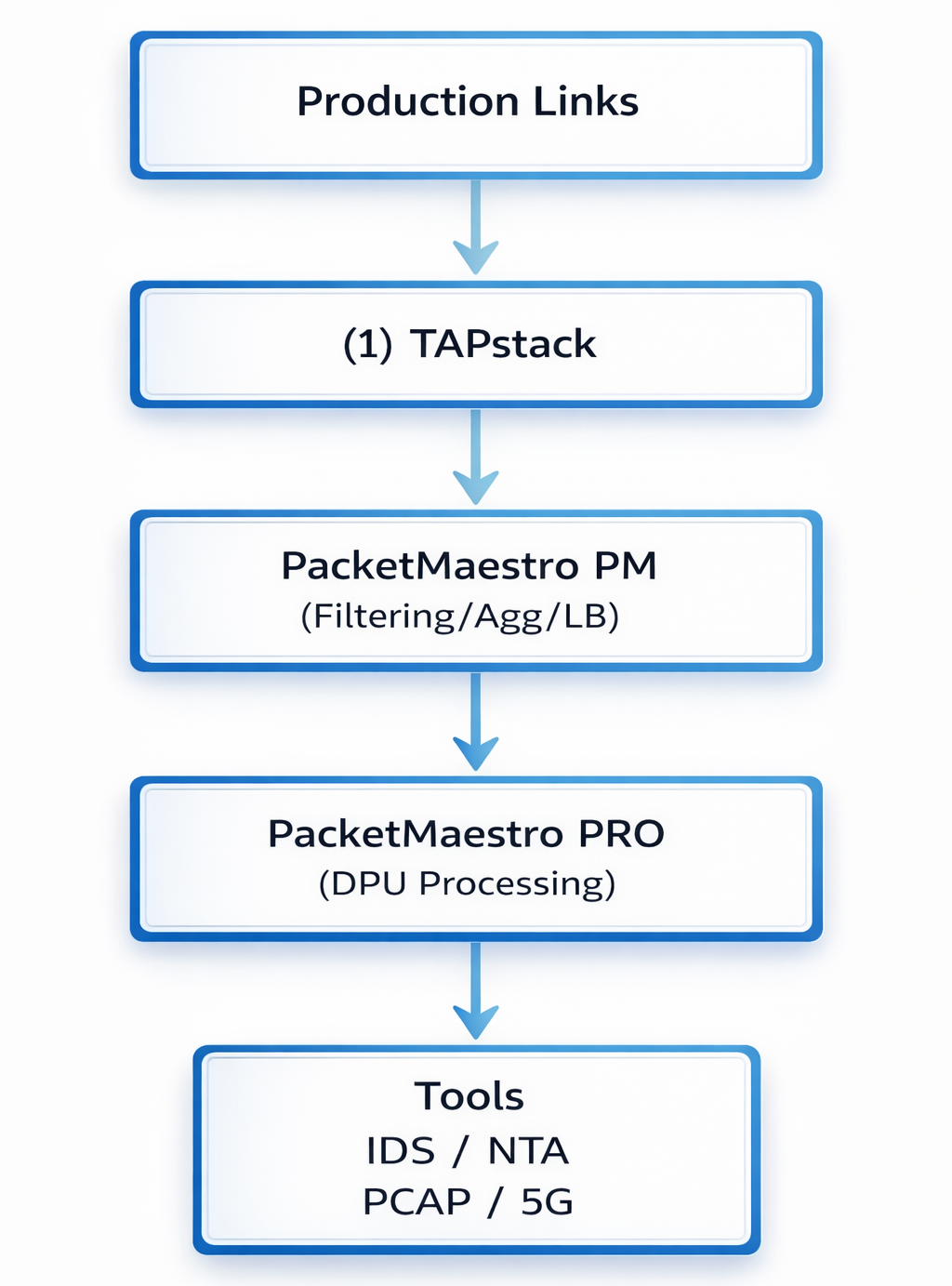

High-Level Reference Diagram
Deployment Tips
When to use PM PRO
- Duplicates are >20% of traffic
- Heavy tunneling: GTP, VXLAN, GRE
- Tools cannot ingest raw 100G/400G
- Need masking or privacy controls
- Need session-steered traffic for probes
When PM alone is enough
- Basic aggregation and filtering
- Low-volume packet brokering
- Simple multicast/replication
Where to place TAPstack: At any link where visibility matters — core, edge, DC spine, 5G UPF, SGW, routers, firewalls.
